The Air-Meter systems offers a concrete and immediate response to the demands of cost control and reduction of energy consumption arising from the use of compressed air in industrial processes.
Verification of the power used by the compressor shows the "Total" cost of the compressed air used by the plant, but you can not know the compressed air cost required by a specific process, a machine or a plant, or arising from any leakages.
Air-Meter has been developed to perform detailed consumption analysis of individual loads, from small circuits to the large distribution pipelines : there is always a suitable Air-Meter.
Thanks to the bundled Air-Monitor software, it is possible to obtain, in relation to the target line, a real-time monitoring of : flow , pressure, electricity committed to the compressor and energy costs, expressed in the form of: graphs, meters total and partial , time averages, management of alarm limits TTL outputs activation for flow and pressure etc..
Monitored data can be saved on PC hard disk , or, for of long-term acquisition, you can disconnect the PC and save data on SD card (DL versions).

Air-Meter systems are available in two main forms:

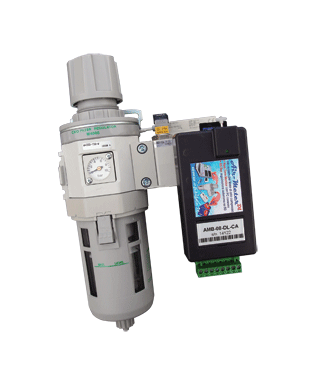

-SW4000 sensorized filter-regulator
   Air treatment equipments with built-in flow and pressure sensors, SD card recorder
   (DL type) and USB connection.
   To have a full screening of machines, pneumatic lines or plants it's enough to supply air    trougth    one of these devices

- Air-Meter Box with external sensors(on-field) for flow and pressure.
  System is composed by a box with USB port, SD Card recorder (DL version) and the terminal   for wiring of pressure and flow sensors installed on the line to be surveyed.
  This solution allows maximum accuracy and a wide range of f.s. for the flow sensor according   to the size of the air uses to monitor.
  Standard sensors are available for flow rates from 50 to 16,000 l / min., for higher flow rates   the Air-Meter Box will be supplied integrated with larger flow sensors, wafer sensors or   ultrasonic sensors that do not require intrusive installations.
